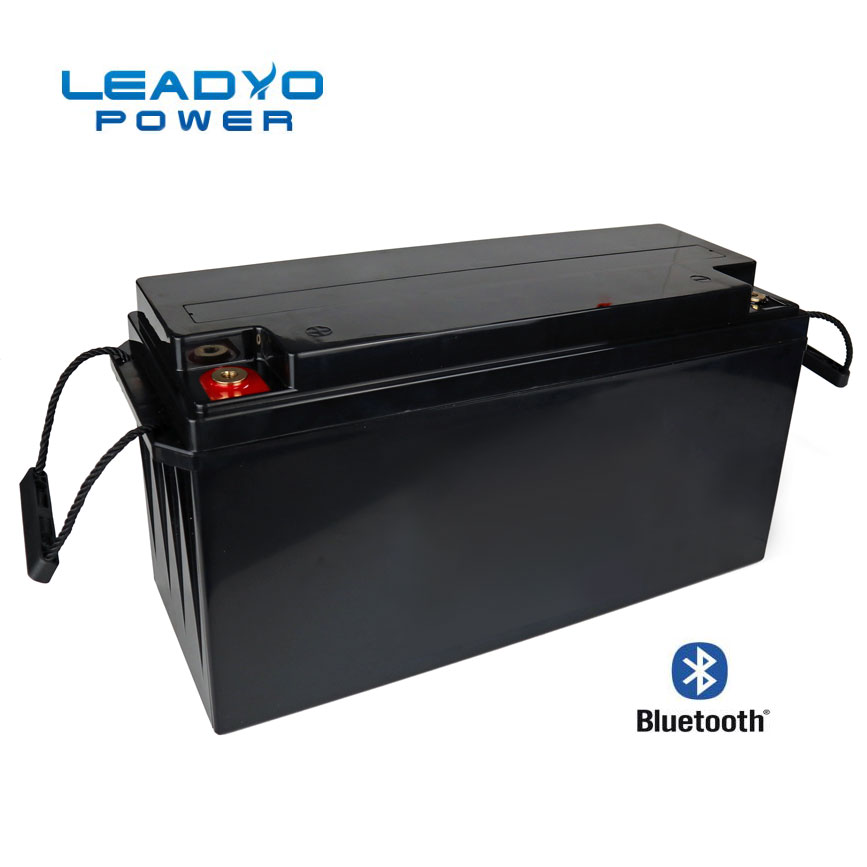

Lithium 12V Deep Cycle Solar Battery 150ah LiFePo4 For Caravan

  • 1
  • 2

Brand Name : LEADYO

Model Number : LP12V150

Certification : UN38.3, CE,MSDS,UKCA

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability : 60Mwh

Delivery Time : 15-45 Days

Packaging Details : UN3480 Standard Export

Nominal voltage : 12V

Nominal capacity : 150Ah

Weight : 19-20kg

Dimension : 480*168*240mm

Continuous current : 100A

Peak current : 300A

Warranty : 2-3 years

High Light : LiFePo4 12V 150ah lithium deep cycle solar battery for caravan

Contact Now



LiFePo4 12V 150ah lithium deep cycle solar battery for caravan





Lithium Iron Phosphate Battery 12.8V 400Ah



Nominal Voltage 12.8V

Nominal Capacity 400 Ah

Capacity @ 20A 300 min

Energy 5120 Wh

Resistance ≤30 mΩ @ 50%

SOC Self Discharge <3% / Month

Balancing function




LiFePO4 benefits
Shelf Price < Lead Acid shelf price
Daily cycle for more than 6 years
Weight < 25 % of Lead Acid
Volume < 33% of Lead Acid
100% Safe
100% Environmentally friendly
LiFePO4 = 12kg / kWh
Lead Acid = 60kg / kWh



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 150Ah   Weight 19kg
Nominal Energy 1920Wh   Case Dimension(L*W*H) 480*170*240mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @30A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  4PCS   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 150A   Max Charge Current 150A
Peak Current 500A   Recommended Charge Current 30A - 75A
Discharge pulse current 700±50A (31±10ms)   End of Charge voltage 14.4V±0.2V
BMS Low Voltge Cut-off 10V    End of discharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20～+65℃   Certifications CE for Battery Pack
Charge Temperature -20～+45℃   UL1642 & IEC62133 & BIS for cells
Storage Temperature Range -20～+45℃
BMS High Temperature Protection 90℃   Shipping classification UN 3480
Battery High Temperature Protection 60℃



Lithium 12V Deep Cycle Solar Battery 150ah LiFePo4 For Caravan



FAQ



Q: Are you a factory?
A: Yes, we are the original factory and have been focusing on reliable and safe lithium batteries for more
than 15 years.


Q: Do you have a minimum order quantity?
A: There is no limit, but the more you order, the more favorable the price you will get.

Q: What is your delivery date?
A: Usually, small cargo is delivered by logistics and express, and large cargo is delivered by sea.Usually within 3-5 weeks after payment confirmation, the exact order quantity shall prevail.

Q:How can I do if I need more help for the order?
A7:You can chat our sales online or send inquiry email, We sincerely look forward to establishing a long-term cooperative relationship with you, if you have any questions, please feel free to contact us!
