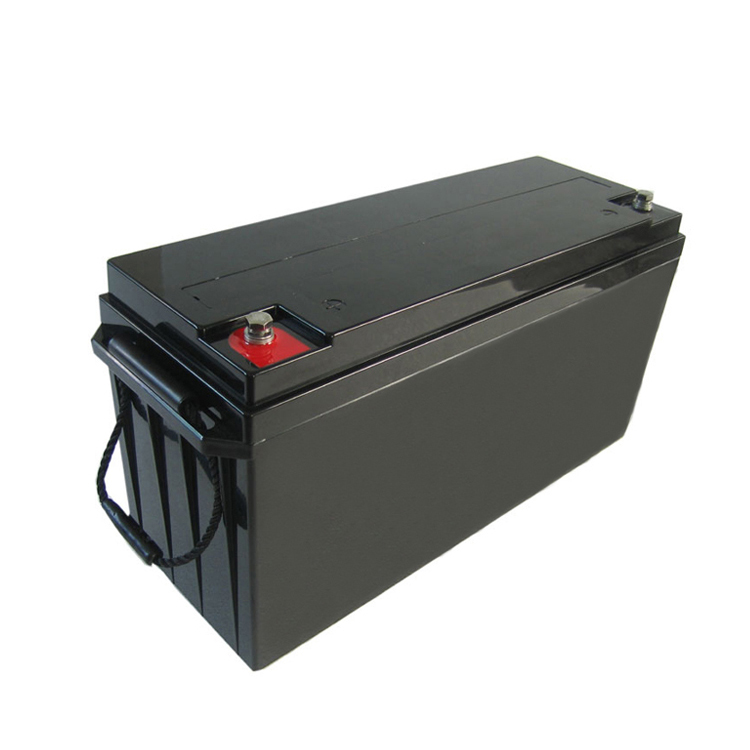

LiFePO4 36V Bluetooth Lithium Battery Light Weight Built In Automatic Protection

  • 1
  • 2

Brand Name : LEADYO

Model Number : LP36V060

Certification : UN38.3, CE,MSDS,UKCA

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability : 60Mwh

Delivery Time : 15-45 Days

Packaging Details : UN3480 Standard Export

Nominal voltage : 36V

Nominal capacity : 60Ah

G.W : 25kg

Size : 480*170*240mm

Work current : 60A

Pluse current : 150A

parallel : no limit

High Light : Bluetooth 36v 20ah 40ah 50ah 60ah 36v Lithium Battery LiFePO4 Battery

Contact Now



Bluetooth 36v 20ah 40ah 50ah 60ah 36v Lithium Battery LiFePO4 Battery



Battery features:

  1. Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
  2. Built-in automatic protection for over-charge, over discharge, over current and over temperature.
  3. Free of maintenance .
  4. Internal cell balancing.
  5. Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
  6. Can be charged using most standard lead-acid charges (set).
  7. Wider temperature range:-20℃~60℃.
  8. Support for Series application expansion (up to 51.2V) and no limit in parallel.



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 38.4V   Terminal Type M8
Nominal Capacity 60Ah   Weight 22kg
Nominal Energy 2304Wh   Case Dimension(L*W*H) 480*170*240mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @14A: 300minutes(5hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series and Parallel NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No limit   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 50A   Max Charge Current 50A
Peak Current 150A   Recommended Charge Current 14A - 30A
Discharge pulse current 200±30A (31±10ms)   End of Charge voltage 43.2V±0.2V
BMS Low Voltge Cut-off 30V (2.0V±0.05v) pc)   Balancing current Auto start
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20～+65℃   Certifications CE for Battery Pack
Charge Temperature -20～+45℃   UL1642 & IEC62133 for cells
Storage Temperature Range -20～+45℃
BMS High Temperature Protection 90℃   Shipping classification UN 3480
Battery High Temperature Protection 60℃



LiFePO4 36V Bluetooth Lithium Battery Light Weight Built In Automatic Protection



FAQ



1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products.Main use in Marine, RV,camping,Electric-fence, led light and other Solar/Wind Power system, Golf Cart, AGV, floor machines,Forklift, EV,E-bike, robot,power tooling, UPS, Medical and Military Equipment etc.

2.How to get a quote?
Please contact with us sales5@leadyo-battery.com or Phone/whatsapp:+ 8618825284421

3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.

4.Do you accept OEM and ODM?
Yes sure, can customized your logo and design battery according to your requirements.
