High Performance Deep Cycle RV Camper Van LiFePO4 Battery L5 12V 100Ah with 5 Years Warranty
L5 Deep Cycel Lithium Iron Phosphate Battery LiFePO4 12V 100Ah for RV ,Camper Van Applications
Nominal Voltage 12.8V
Nominal Capacity 100 Ah
Capacity @ 20A 300 min
Energy 1280 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function

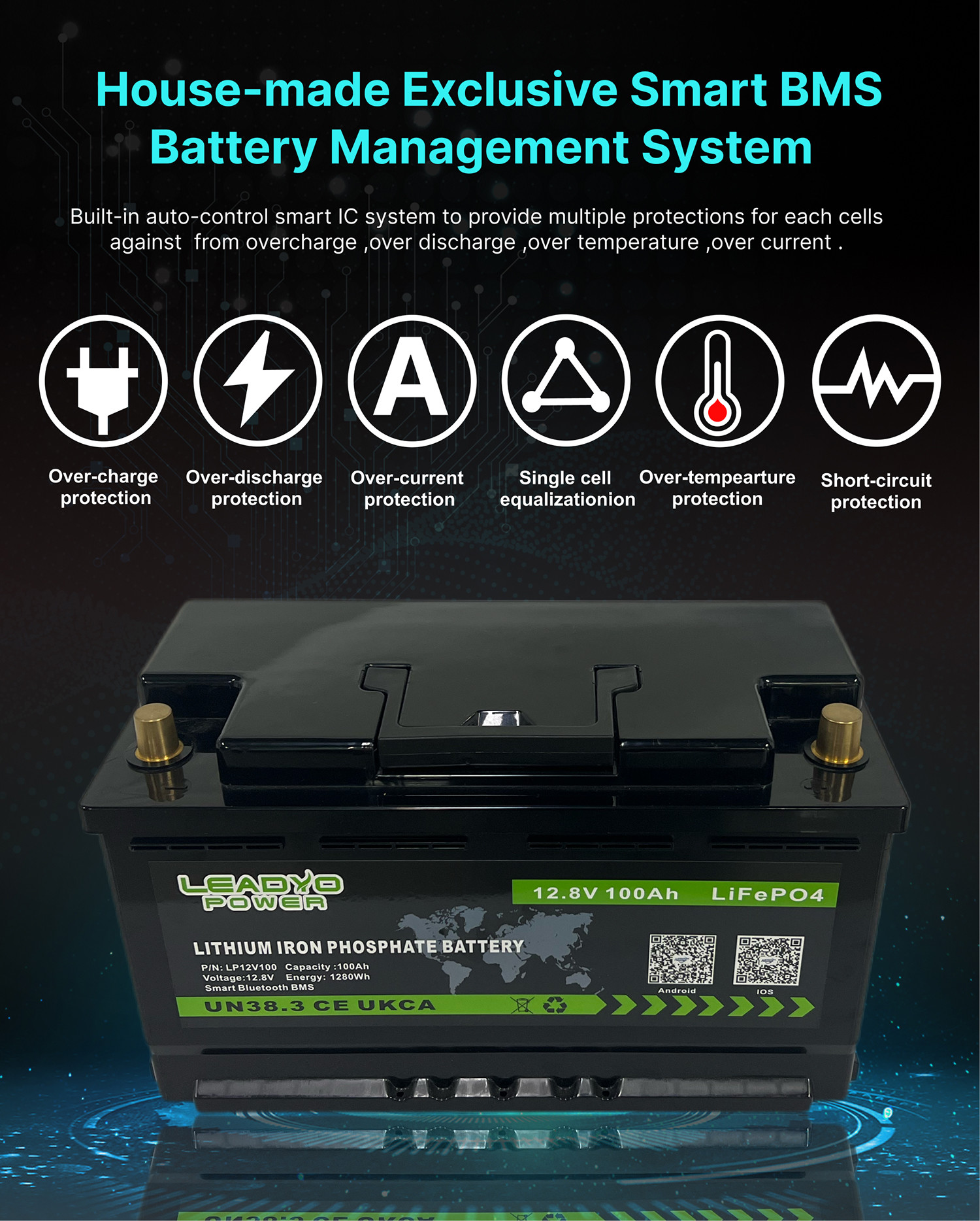

With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
12V 100Ah lifepo4 battery widely use in RV , 4WD, caravan, camper van or other solar storage ect...
High performance and COMPETITIVE PRICE than market.
•12.8v 100Ah
•Max continuous discharge 150A/200A
•24V&36V&48V series, no limit parallel
•Custom-made BMS for safety protection

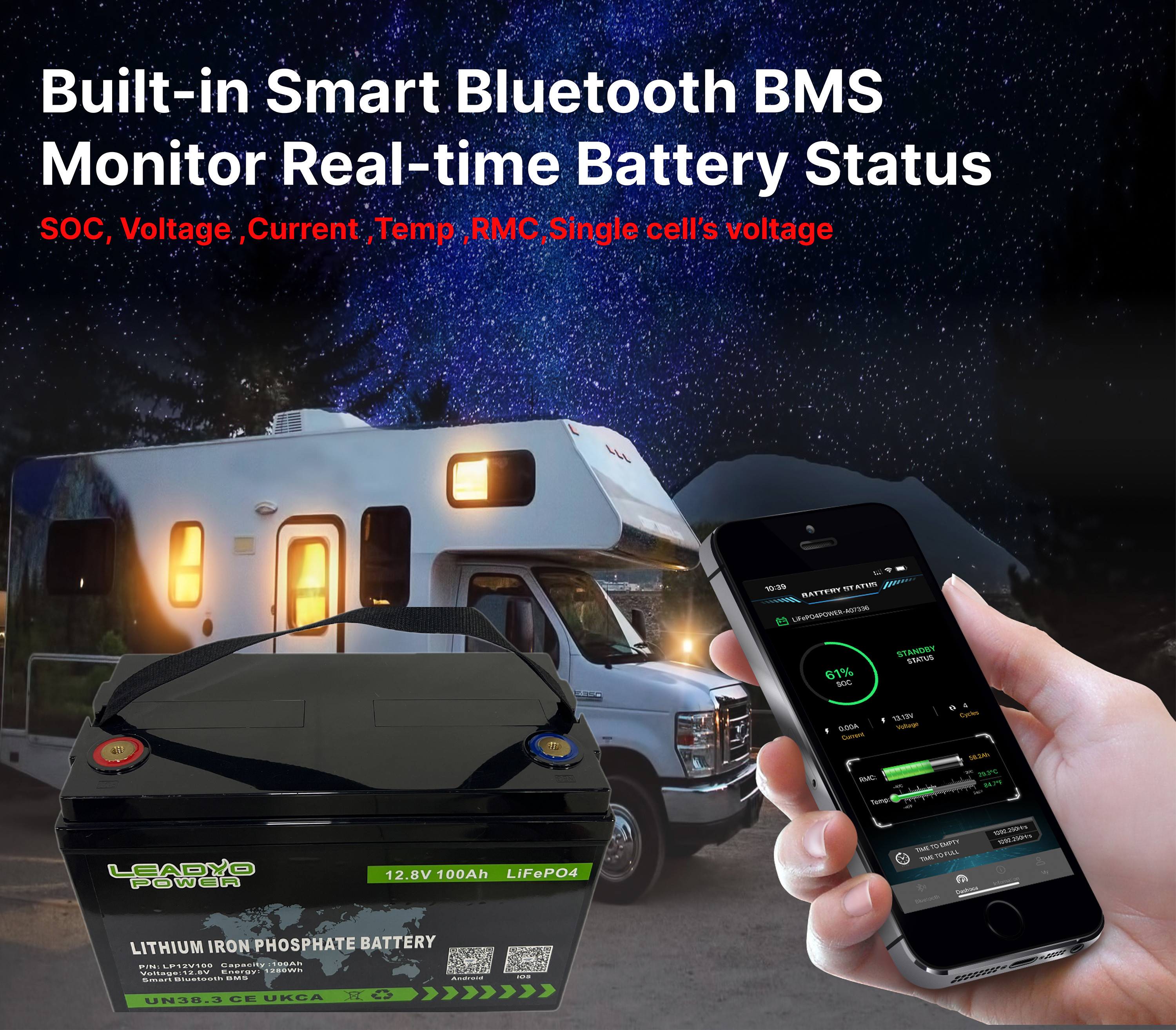

•Bluetooth App,easy to monitor battery status by Android and iOS.
•Low temperature with HEATING system
•With CE,UN38.3 and MSDS certificates
Please contact us if you are interested.
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 12.8V | | Terminal Type | round bolts |
| Nominal Capacity | 100Ah | | Weight | 10.5kg |
| Nominal Energy | 1280Wh | | Case Dimension(L*W*H) | L355*W175*T190mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | ABS |
| Capacity | @25A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series and Parallel | 4PCS | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | No limit | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 100A | | Max Charge Current | 100A |
| Peak Current | 200A/60s | | Recommended Charge Current | 20A -50A |
| Discharge pulse current | 500±50A (31±10ms) | | End of Charge voltage | 14.4V±0.2V |
| BMS Low Voltge Cut-off | 10V | | End of discharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 & BIS for cells |
| Storage Temperature Range | -20～+45℃ | |
| BMS High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
| Battery High Temperature Protection | 60℃ | | |

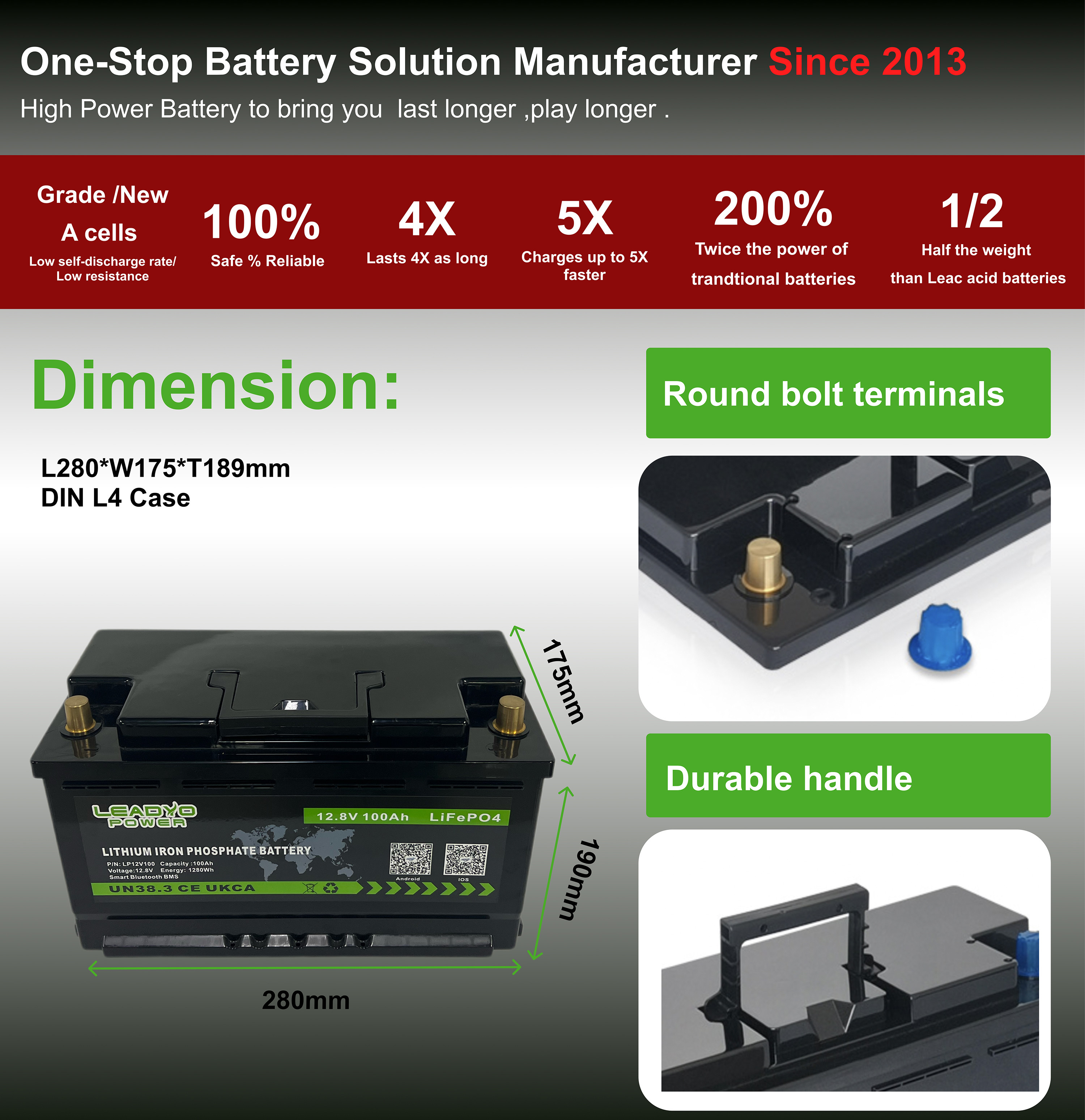

Picture of 12V L5 100Ah RV Camper Van LiFePO4 Battery Pack
Supporting 4pcs in series connection and unlimited paralleled .
Certifications : UN38.3 ,CE ,MSDS .IEC ,UKCA for whole battery packs .
Widely application for RV ,Camper ,Marine boats , home solar system ,Mobility vehicles ,golf carts ,forklift .etc
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more golf cart lifepo4 battery?
Yes,please contact us.
6.How to get a quote?
Please contact us,sales6@leadyo-battery.com
