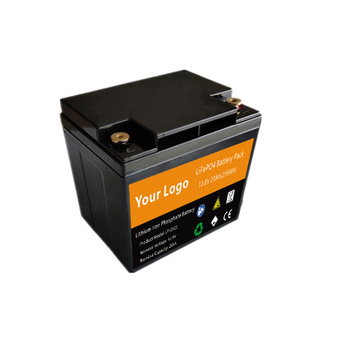

Rechargeable Lithium ion Battery 12V 20Ah 400CCA Trolling Motor Starting Lifepo4 Batteries
Lithium Iron Phosphate Battery 12V 20Ah
Nominal Voltage 12.8V
Nominal Capacity 20 Ah
Capacity @ 4A 300 min
Energy 256 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Features:
Higher Performance LifePO4 battery
100% Maintenance free
With Different sizes
Dual purpose engine start and deep cycling
Powerful Cars,boat,light turck,SUVs etc....
Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
| ELECTRICAL SPECIFICATIONS | | MECHANICAL SPECIFICATIONS |
| Nominal Voltage | 12.8V | | Terminal Type | Screws |
| Nominal Capacity | 20Ah | | Weight | 3kg |
| Nominal Energy | 256Wh | | Case Dimension(L*W*H) | L244*W176*H197mm |
| Internal Resistance | ≤30 @50% SOC | | Case Type | ABS |
| Capacity | @4A: 300minutes(5hours) | | Cell type / Chemistry | LiFePO4 |
| Self Discharge | 5% /per month | | LCD or Bluetooth Function | Optional |
| Maximum In Series | NO | | BMS:low voltage,high voltage,over temperature, |
| Maximum In Parallel | No | | Over current,short-circuit protection .etc |
| Discharge Current and Voltage Specifications | | Charge Current and Voltage Specifications |
| MAX Continuous Discharge Current | 20A | | Max Charge Current | 20A |
| CCA | 400A | | Recommended Charge Current | 4A - 10A |
| Discharge pulse current | 800±50A (31±10ms) | | End of Charge voltage | 14.6V |
| BMS Low Voltge Cut-off | 10V | | End of disCharge voltage | 10V |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | | Balancing Voltage | 3.6V±0.05v pc |
| Temperature Ranges | | COMPLIANCE SPECIFICATIONS |
| Discharge Temperature | -20～+65℃ | | Certifications | CE for Battery Pack |
| Charge Temperature | -20～+45℃ | | UL1642 & IEC62133 for cells |
| Storage Temperature Range | -20～+45℃ | |
| BMS High Temperature Protection | 90℃ | | Shipping classification | UN 3480 |
FAQ
1. Are you factory or trade company?
We ara leading battery manufacturer in China,Is a high-tech enterprise, specializing in R&D and marketing of Lithium rechargeable battery products. Our Lithium battery products are widely used in Marine boat /RV/ Camping cart/AGVGolf-cartelectric-motorcycle/Solar energy storage systemelectric vehicleselectric tools/UPS backupTelecom towersMedical equipment and etc.
2.What is your main product?
•Deep cycle LiFePo4/NMC batteries, 12V-96V LiFepo4 3-400A optional;
•Start-stop LiFepo4 12V 200CCA-1600CCA
•1-32S Lithium PCM/BMS max 250A
•NMC/LFP/LTO cells
3.When you delivery order?
Normally 7-15 days for samples order , it can be negotiated based on exact order quantity and schedule.
4.Do you accept OEM?
Yes sure, can customized your brand battery
5.May i get more starting lifepo4 battery?
Yes.
Crank Amps Optional : 200/400/600/800/1000/1200/1600CCA
Current Optional : 20Ah/40Ah/60Ah/80Ah/100Ah/120Ah
Group size optional : 24' 27' 31' 34'
6.How to get a quote?
Please contact with us sales6@leadyo-battery.com
