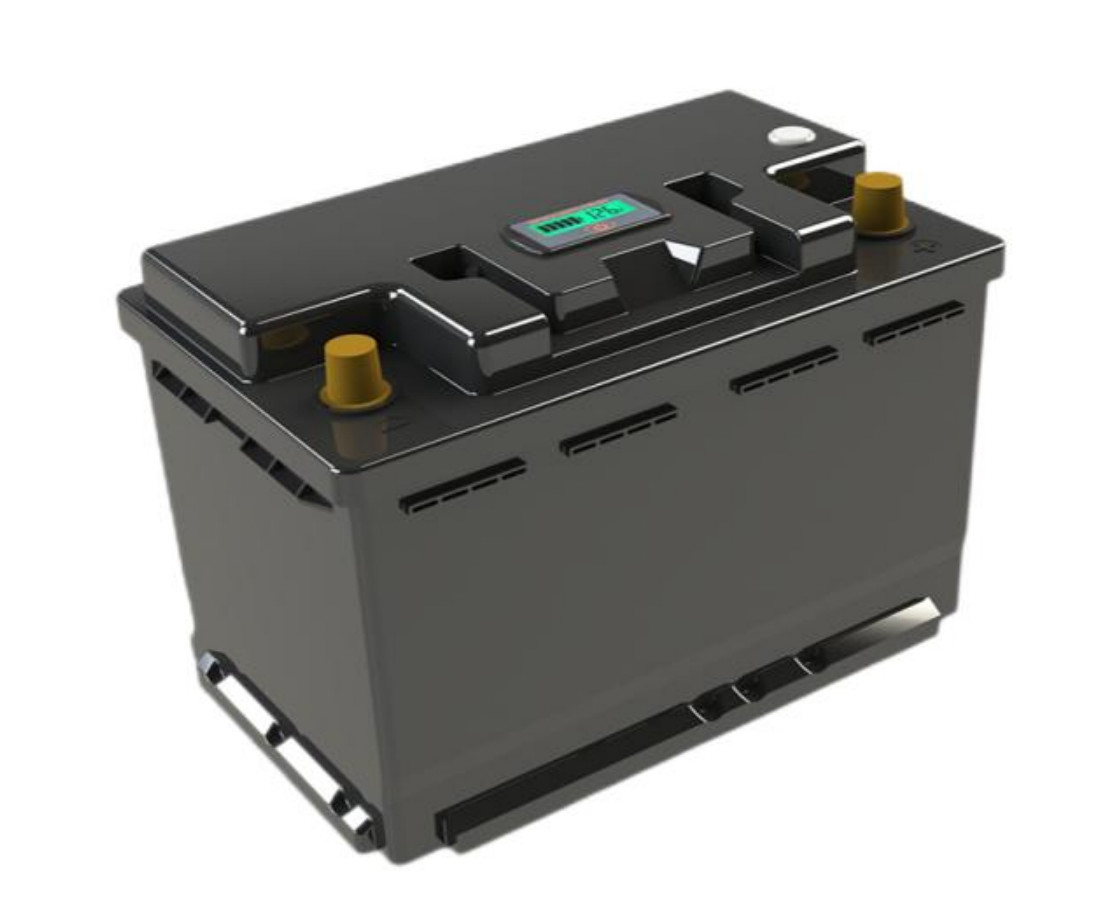

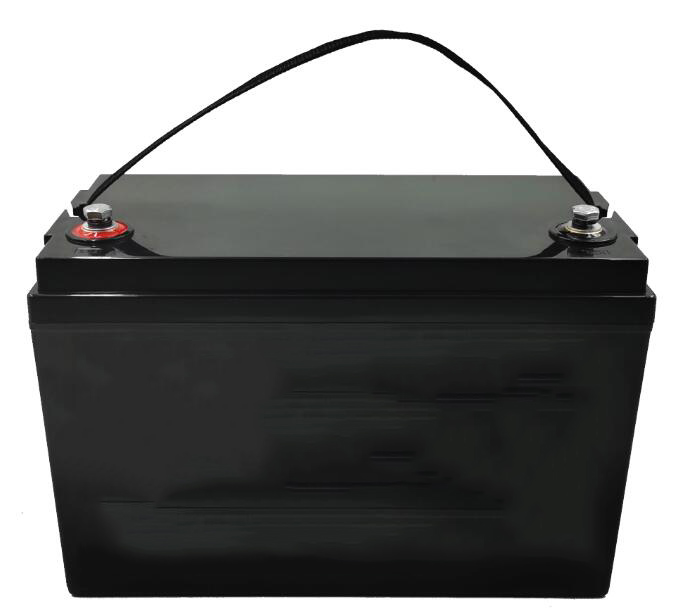

12 Volt 1200CCA Deep Cycle Trolling Motor Battery 12V 80Ah Marine Battery For Trolling Motor

  • 1
  • 2

Brand Name : LEADYO

Model Number : AT12V080

Certification : UN38.3, CE,MSDS,UKCA

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online

Supply Ability : 60Mwh

Delivery Time : 15-45 Days

Packaging Details : UN3480 Standard Export

Nominal voltage : 12.8V

Nominal capacity : 80Ah

Weight : 10kg

Dimension : L330xW170xH210mm

Max charge current : 50A

Max discharge current : 100A

CCA : 1200CCA

High Light : Deep Cycle Trolling Motor Battery

Contact Now



12 Volt 1200CCA Deep Cycle Trolling Motor Battery 12V 80Ah Marine Battery For Trolling Motor



Features of Lifepo4 starter battery 12V 80Ah 1200A trolling motor battery

  1. Lifepo4 High discharge cells inside
  2. Smart BMS inside for providing multiple protection to each cells.
  3. CCA 1000A
  4. Higher Performance Light weight LifePO4 battery
  5. 100% Maintenance free
  6. 12V and 24V Both available
  7. Lithium Iron Phosphate(LiFePO4) is the safest type of lithium battery and a ready to go replacement and updrade from lead acid, AGM or gel.
  8. Doul Purpose, deep cycles and starting functions

Specifications of Lifepo4 starter battery 12V 80Ah 1200A trolling motor battery



ELECTRICAL SPECIFICATIONS   MECHANICAL SPECIFICATIONS
Nominal Voltage 12.8V   Terminal Type M8
Nominal Capacity 80Ah   Weight 10kg
Nominal Energy 1024Wh   Case Dimension(L*W*H) L280xW175xH188mm
Internal Resistance ≤30 @50% SOC   Case Type ABS
Capacity @20A: 180minutes(3hours)   Cell type / Chemistry LiFePO4
Self Discharge 5% /per month   LCD or Bluetooth Function Optional
Maximum In Series  NO   BMS:low voltage,high voltage,over temperature,
Maximum In Parallel No   Over current,short-circuit protection .etc
Discharge Current and Voltage Specifications   Charge Current and Voltage Specifications
MAX Continuous Discharge Current 100A   Max Charge Current 50A
CCA 1200A   Recommended Charge Current 20A - 50A
Discharge pulse current 1300±50A (31±10ms)   End of Charge voltage 14.6V
BMS Low Voltge Cut-off 10V    End of disCharge voltage 10V
Short Circuit Protection 200-800 µs Auto recover or charge release   Balancing Voltage 3.6V±0.05v pc
Temperature Ranges   COMPLIANCE SPECIFICATIONS
Discharge Temperature -20～+65℃   Certifications CE for Battery Pack
Charge Temperature -20～+45℃   UL1642 & IEC62133 for cells
Storage Temperature Range -20～+45℃
BMS High Temperature Protection 90℃   Shipping classification UN 3480
Battery High Temperature Protection 60℃







12 Volt 1200CCA Deep Cycle Trolling Motor Battery 12V 80Ah Marine Battery For Trolling Motor

12 Volt 1200CCA Deep Cycle Trolling Motor Battery 12V 80Ah Marine Battery For Trolling Motor12 Volt 1200CCA Deep Cycle Trolling Motor Battery 12V 80Ah Marine Battery For Trolling Motor





FAQ



Q: Are you trading company or manufacturer?
A: We are Leadyo original factory from shenzhen , China.



Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed



Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest up to 48V.



Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.



Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
